Efficient Heating

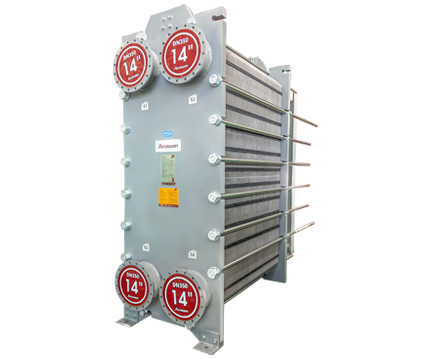

AN Series Gasketed Pressure Isolation Station Heat Exchanger

Designed for long-distance district heating pressure isolation stations. Features advanced distribution zones, optimized corrugations, equal flow areas, and high unit heat transfer coefficients. Full counter-current flow and high aspect ratios (up to 1:3.5) ensure excellent performance for low LMTD (≈5°C) applications. Intense turbulence minimizes fouling; small flow dead zones and smooth stainless surfaces reduce pressure loss versus domestic plate types. Channel mixing combinations optimize area usage. Design pressure 30 Bar, test pressure 39 Bar, max capacity 1800 m³/h, max area 3000 m². Solves Chinese water quality challenges across the heating chain (source stations, booster stations, secondary stations, terminal units), improving efficiency, saving energy, and enhancing heating effects. Born for long-distance transport.
Features

Small temperature difference heat exchange

Compact structure, small footprint

High pressure rating

Optimized plate size and angle combinations to maximize pressure drop

Corrugation and flow channel design create strong turbulence, enhancing heat transfer coefficient

Low noise and vibration

Low operational resistance

Specifications
  • Maximum processing capacity
    Maximum processing capacity
    1800m³/h
  • Maximum design pressure
    Maximum design pressure
    30bar
  • Maximum heat transfer
    Maximum heat transfer
    120MW
  • Minimum temperature difference
    Minimum temperature difference
    5-10℃
  • Plate material
    Plate material
    AISI 304, 316, 316L, SMO254...
