Efficient Heating

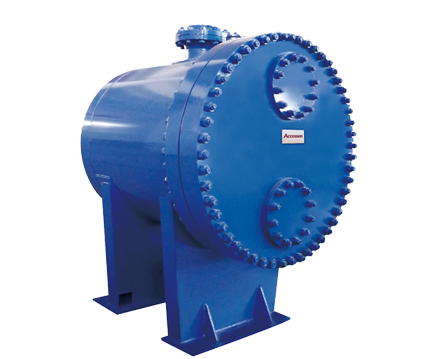

AWPS Series Fully Welded Plate-Shell Heat Exchanger - H

High-efficiency exchanger for high-temperature/pressure applications. Simple structure: shell, plate pack, nozzles/flanges, covers, supports. Combines gasketed plate efficiency with shell-and-tube pressure/temperature capability. Offers higher temp/pressure resistance than welded frame types, effectively replacing shell-and-tube exchangers.
Features

Retains heat transfer characteristics of gasketed exchangers

High temperature resistance

Removable for cleaning

Low fouling coefficient

High pressure resistance

No gasket aging, low operating costs

Specifications
  • Maximum design pressure
    Maximum design pressure
    80bar
  • Maximum temperature resistance
    Maximum temperature resistance
    500℃
  • Plate material
    Plate material
    AISI304L, 316L, Titanium, Hastelloy, SMO254...
