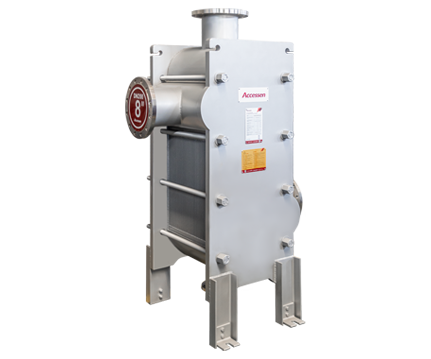

AWD Series Fully Welded Frame Heat Exchanger - I

Combines advantages of gasketed plates and addresses shell-and-tube limitations. Eliminates gaskets for medium-pressure/temperature use. Retains full counter-flow, offering 3-5x higher efficiency than shell-and-tube. Types: Non-removable, Double-side removable, Six-side removable.
Features

Retains heat transfer characteristics of gasketed exchangers

Low fouling coefficient

High temperature resistance

High pressure resistance

Removable for cleaning

No gasket aging, low operating costs

Specifications
  • Maximum processing capacity
    Maximum processing capacity
    2500m³/h
  • Maximum design pressure
    Maximum design pressure
    35bar
  • Maximum temperature resistance
    Maximum temperature resistance
    350℃
  • Plate material
    Plate material
    AISI304, 316, 316L, 90LTitanium, Hastelloy, Ni, SMO254...
