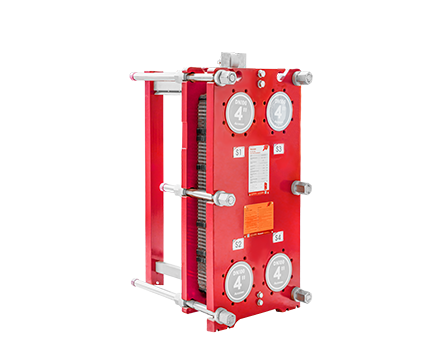

ASW Series Laser Semi-Welded Plate Heat Exchanger - I

Designed for applications where gaskets are unsuitable or high safety/cleanliness is required. One fluid side (special media/high cleanliness) is laser-welded; the other side uses gaskets. Performance is identical to gasketed plate exchangers except for the welded side.
Features

Includes all advantages of gasketed exchangers

Laser welding for special media channels

CR or PTFE gasket materials

High stability and safety on welded side

Higher efficiency and removability compared to fully welded

Specifications
  • Maximum processing capacity
    Maximum processing capacity
    600m³/h
  • Maximum design pressure
    Maximum design pressure
    25bar
  • Maximum temperature resistance
    Maximum temperature resistance
    150℃
  • Plate material
    Plate material
    AISI304L, 316L, Titanium, Hastelloy, SMO254...
