Efficient Heating

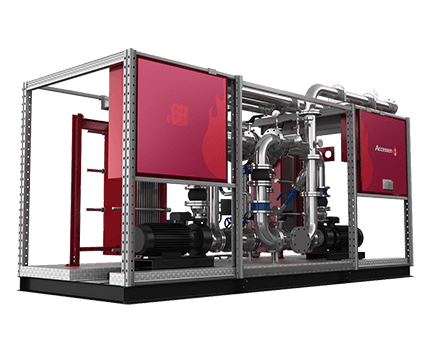

APS -V Zhurong Series Standardized Heating Unit

Accessen's newly designed standardized series for district heating. Redesigned heat exchange/circulation modules maximize benefits for all stakeholders from manufacturing to O&M, representing a technical upgrade. Uses the common 2+2 configuration (two exchangers + two pumps). Symmetrical internal piping ensures uniform flow and stable operation with minimal resistance. Secondary pumps are high-efficiency horizontal types with upgraded VFD control. 70% of process piping uses standard parts, shortening lead times and reducing maintenance costs. The integrated frame protects internal equipment, eases transport/installation, and accommodates controls. Fully automatic operation with cloud data upload supports web/mobile monitoring and AR remote inspection. Handles diverse heat exchange/circulation needs. Stock units (pre-assembled & tested) enable fast delivery.
Features

Timely delivery with pre-production

Intelligent control with separated strong/weak electricity

Standardized product with finalized design and bulk parts procurement

Fast transport, tailored to site needs

Easy maintenance with horizontal pumps and sliding base

Built-in bypass for pipeline flushing and pump anti-water hammer

Rocker-arm touchscreen

Specifications
  • Maximum heat load
    Maximum heat load
    8MW
  • Maximum design pressure
    Maximum design pressure
    1.6MPa
  • Maximum temperature resistance
    Maximum temperature resistance
    130℃
  • Plate material
    Plate material
    AISI304, 316...
