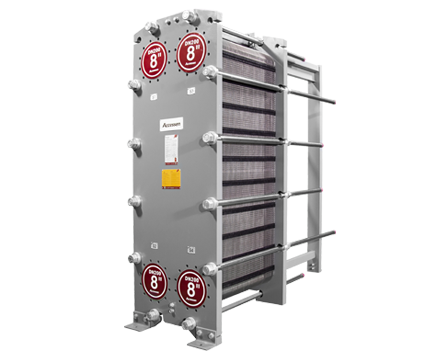

AU, AN, AS, AP, AC Series Gasketed Plate Heat Exchanger - I

Gasketed plates meet most industrial demands. Plates with glue-free gaskets ensure high heat transfer coefficients, cost-effectiveness, safety, reliability, and easy maintenance. Accessen's specialized plate patterns for diverse conditions (60 models) cover varying capacities, qualities, and temperatures. Unique designs offer plates with different angles, groove depths, and aspect ratios within the same port size for optimal solutions. This versatility delivers higher heat transfer coefficients, maximizes pressure drop utilization, and reduces downtime.

Features

Improved flow distribution area ensures even fluid distribution

Glue-free clip-on sealing gaskets

Optimized plate size and angle combinations to maximize pressure drop

More optional accessories

Eliminates fouling accumulation areas

Corrugation and flow channel design create strong turbulence, enhancing heat transfer coefficient

Self-locking plate corners prevent misalignment

Standard roof-type gasket with leak-proof design, extending gasket lifespan

Specifications

Maximum processing capacity

5000m³/h
Maximum design pressure

25bar
Maximum heat transfer

80MW
Temperature

Minimum temperature difference: 0.5-1℃, Maximum temperature resistance: 200℃
Plate material

AISI 304, 316, 316L, TI, SMO254...
