Efficient Heating

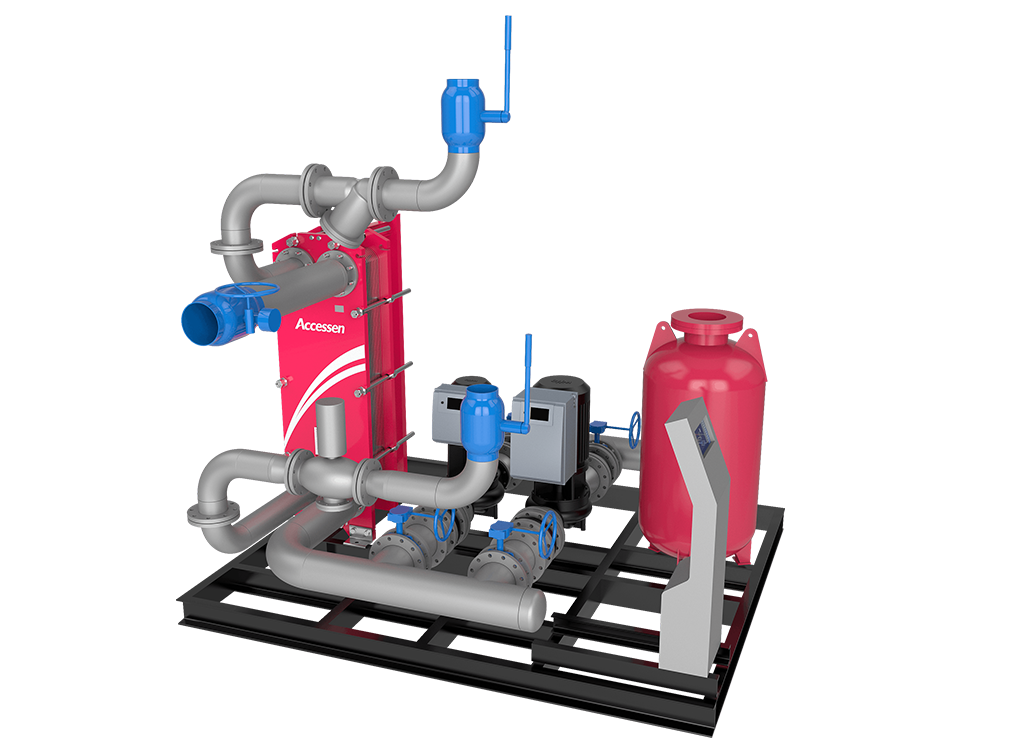

ARDP Full-Conditions High-Efficiency Heat Exchange & Circulation Unit

Optimizes operational energy use for lowest lifecycle cost. Upgrades Accessen's efficient unit configuration to prioritize high efficiency across all operating conditions, not just full load. Ensures safe operation at design conditions while enabling controllable, automatic, and efficient part-load operation. Scientific calculation, precise selection, rational matching, and optimized design maximize dynamic efficiency of energy-using equipment and minimize distribution system friction loss. Prioritizes lowest Life Cycle Cost (LCC) solutions, tailored to client needs (operation, maintenance, backup, expansion). Integrated control unit offers multiple pre-set strategies for different network/end conditions. Features interfaces for easy integration with smart heating management systems.
Features

Advanced structural design

'Zero' resistance filter

Flexible operating condition selection

Visible economic benefits

Wide plate selection

High-efficiency heat exchange

High-efficiency pump operation

Low-resistance piping system

Smart, precise heating

Energy-saving across all conditions

Specifications
  • Source side temperature range
    Source side temperature range
    -20-130℃
  • Source side max allowable pressure
    Source side max allowable pressure
    2.5MPa
  • User side temperature range
    User side temperature range
    5-95℃
  • User side max allowable pressure
    User side max allowable pressure
    2.5MPa
  • Number of pumps
    Number of pumps
    2-3
  • Number of exchangers
    Number of exchangers
    1-2
  • Heat load
    Heat load
    1-8MW
  • Main pipe diameter
    Main pipe diameter
    DN50-DN300
